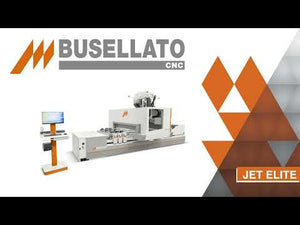

Busellato Jet Elite CNC Pod & Rail Router

Description

High-Precision CNC Machining for Advanced Woodworking & Panel Processing

The Casadei Busellato Jet Elite is a versatile and high-performance CNC machining center featuring a pod and rail system designed for complex woodworking, cabinetry, and panel processing. Built for high-speed drilling, routing, and cutting, the Jet Elite combines rigid construction, precision automation, and user-friendly software to enhance production efficiency and deliver superior machining results.

Upgrade Your CNC Production with the Jet Elite Today!

The Casadei Busellato Jet Elite CNC Pod & Rail Router is the ultimate solution for woodworking professionals seeking speed, accuracy, and flexibility. Contact us today to learn how this machine can optimize your manufacturing process!

Features

Key Features

• Monolithic Machine Structure: Heavy-duty, ribbed steel frame ensures stability and vibration-free machining.
• Pod & Rail System: TL tubeless aluminum panel supports with double vacuum circuit for optimal workpiece holding.
• Electrospindle Options:
  • Jet 3 T Electrospindle: 9.5 kW (S6) with pneumatic hood and manual aggregate attachment.
  • Jet 4 T Electrospindle: 9.5 kW (S6) with 0-360° CNC-controlled rotation for angular operations.
  • 14 kW Electrospindle (Optional): Increased power for high-performance machining applications.
• Drilling Unit: 18 JT Drilling Head with 12 vertical spindles, 4 horizontal X-axis spindles, 2 horizontal Y-axis spindles, and integrated X-axis saw unit.
• Automatic Tool Changing System:
  • LINEAR 11: 11-position tool changer for efficient, automated tool swaps.
  • ST 14 Plus (Optional): 14-position linear tool changer under the beam for additional tool capacity.
• High-Speed Axis Motion: X and Y axes move on prismatic linear guides, ensuring precision and durability.
• Centralized Extraction System: Pneumatically controlled dust extraction ports reduce airborne particles and improve worksite cleanliness.
• Safety Features: Equipped with contact-sensitive bumpers and protective anti-ejection window, ensuring operator safety.
• SmartControl with Easy2Go CNC: Touchscreen interface simplifies operation, diagnostics, and maintenance tracking.

Advantages

✔ High-Precision Machining: Pod & rail system with vacuum clamping guarantees stability and accuracy.
✔ Increased Productivity: Automatic tool changers and software-assisted workflows minimize downtime.
✔ Flexible Machining: Handles wood, MDF, laminated panels, and composite materials.
✔ Advanced Software Compatibility: Fully compatible with industry-standard CAD/CAM software.
✔ Optimized Dust Collection: Integrated system improves workpiece visibility and reduces maintenance.

Benefits

Business Benefits

• Enhanced Output Quality: Precision routing and drilling for high-end furniture, cabinetry, and millwork.
• Time & Cost Efficiency: Automated workflows reduce labor costs and increase production speed.
• Versatile Application: Suitable for doors, windows, furniture panels, and complex 3D milling.
• Future-Proof Investment: Expandable tool changer and software ensure long-term adaptability.

Technical Data

Technical Data

• Working Dimensions: 3115 mm (X) x 1320 mm (Y) x 180 mm (Z)
• Electrospindle Power: 9.5 kW (S6) HSK-F63 interface (optional 14 kW upgrade)
• Drilling Head: 12 vertical spindles, 4 horizontal X-axis spindles, 2 horizontal Y-axis spindles, 125 mm integrated saw unit
• Tool Changer: ST 14 Plus and LINEAR 11 (both standard) providing a 14-position under-beam tool changer and an 11-position linear tool changer mounted on the X-axis
• Vacuum Pump: 90 m³/h
• Max. Vectorial Speed: X = 56 m/min
• Dust Extraction Ports: 4500 m³/h capacity
• Machine Weight: Varies by configuration

Options

Contact your JKL Sales Representative for a full list of available options.  Here are a few of the most popular optional features:

• 26 JT Drilling Head with Integrated Saw Unit: Optional high-performance boring head for expanded drilling and cutting capabilities.
• Jet 4 T Electrospindle: CNC-controlled 0-360° aggregate rotation for enhanced machining flexibility.
• Laser Workpiece Positioning System: Speeds up vacuum cup placement for increased efficiency.
• Eco System 2.0: Energy-saving management system reduces compressed air and vacuum pump consumption.
• Belt Conveyor for Chip Evacuation: Enhances waste disposal and keeps the working area clean.
