00L0727445D Cylinder

Description

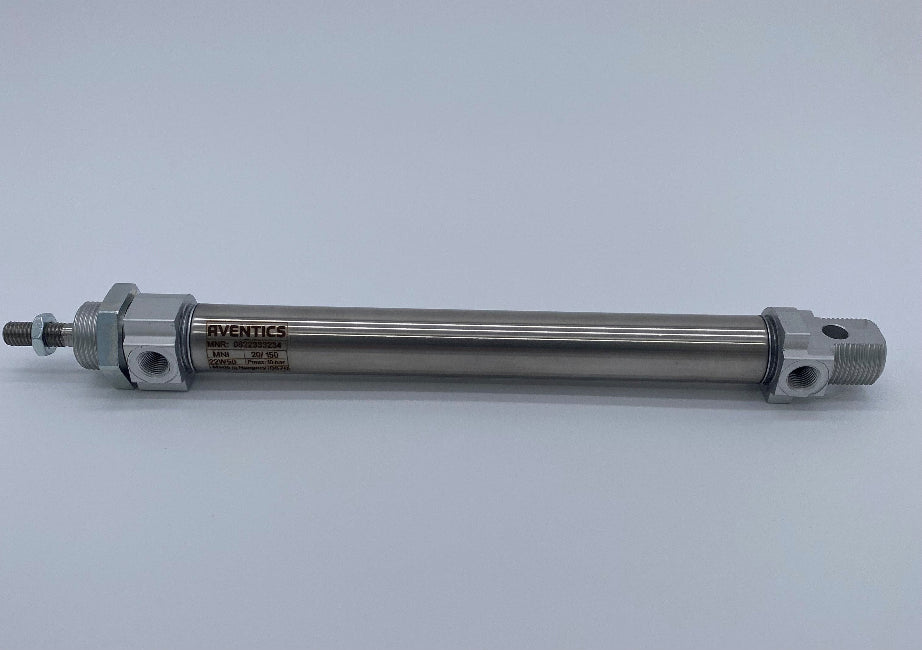

The 00L0727445D Air Cylinder is a pneumatic component used in woodworking CNC machines to perform various automated functions that require linear motion. Air cylinders are often used in clamping systems, tool changers, or material handling mechanisms to help with precision and automation in woodworking processes.

Key Features

• Model Number: 00L0727445D
• Function: Converts compressed air into linear mechanical movement, typically used for pushing, pulling, or clamping tasks in CNC machines.
• Application: Commonly used in clamping, lifting, or shifting materials or tools within the CNC machine during machining operations.
• Material: Likely made of high-strength materials such as anodized aluminum or stainless steel for durability and resistance to wear.

Common Applications in CNC Machines

✅ Clamping: Secures workpieces during cutting, milling, or other machining operations.
✅ Tool Changing: Moves tools into position or ejects tools in automated tool changers.
✅ Material Handling: Moves workpieces from one area of the CNC machine to another.
✅ Automatic Adjustments: Assists in machine settings or adjustments during operations.

Installation & Maintenance Tips

• Air Supply: Ensure that the air supply is filtered, and the correct pressure is applied to the cylinder to avoid malfunction or wear.
• Lubrication: Regularly lubricate the air cylinder according to manufacturer guidelines to prevent friction and ensure smooth operation.
• Seals & Maintenance: Inspect seals and piston components for wear and leakage. Replace them as needed to avoid air loss and maintain efficiency.
• Alignment: Make sure the cylinder is aligned correctly during installation to avoid misoperation or undue stress on the components.
