03B2017153G Pin

Description

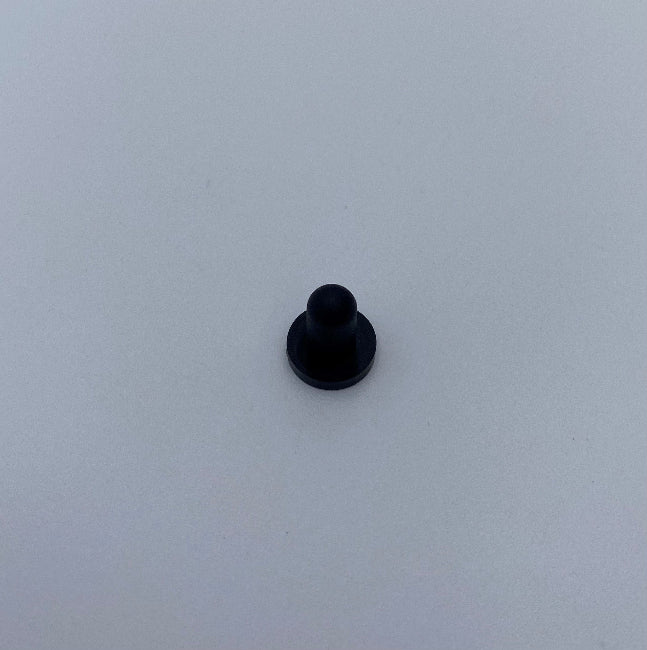

The 03B2017153G Pin is a component used in woodworking CNC machines, specifically for vacuum activation in systems such as the IMC Pod. This pin is likely a key part of the mechanism that helps engage or disengage the vacuum system, ensuring secure holding of workpieces during the machining process.

Key Features

• Model Number: 03B2017153G
• Application: Used in the vacuum activation mechanism of an IMC Pod (or similar vacuum holding systems) within a woodworking CNC machine. The pin may help activate or release the vacuum system that holds the workpiece in place during cutting, milling, or other operations.
• Material: Typically made from durable materials such as stainless steel or hardened alloy to resist wear, pressure, and environmental factors in a CNC machine environment.
• Function: This pin serves to either engage or disengage a vacuum seal, enabling the secure attachment or release of materials for precise machining.

Common Applications in CNC Machines

✅ Vacuum System Activation: The pin is used to engage or disengage the vacuum system that holds workpieces in place, providing a secure foundation during CNC operations.
✅ Material Handling: Works in conjunction with the vacuum system to ensure that the workpiece remains stationary and accurately positioned while the machine performs the task.
✅ Tool or Pod Mechanism: Often part of the larger tool-changing or material handling system inside the CNC machine.

Installation & Maintenance Tips

• Proper Alignment: Ensure the pin is properly aligned with the mechanism it engages or disengages to ensure reliable activation of the vacuum system.
• Wear Inspection: Check the pin regularly for any signs of wear or damage, as excessive wear could impact its functionality and affect the vacuum system’s performance.
• Lubrication: If required, lubricate the pin and surrounding components to ensure smooth operation, especially if it is part of a moving mechanism.
• Vacuum System Check: Periodically test the vacuum system to ensure it is working effectively, as issues with the pin could lead to loss of suction or poor workholding.
