03B2017223F Tool Holder

Description

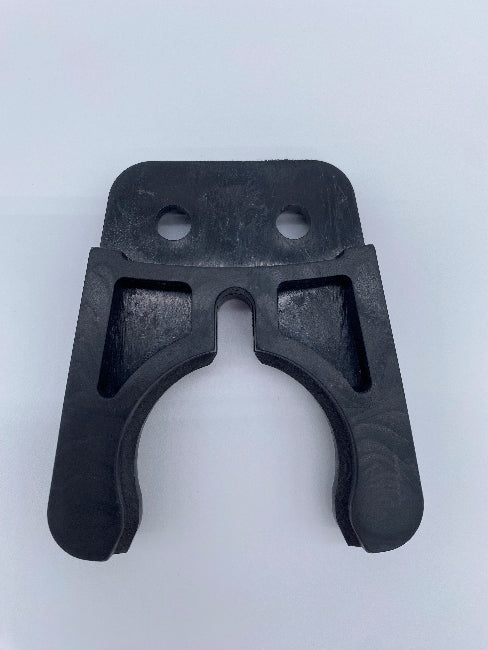

The 03B2017223F Nylon Collet ISO 30 Cone is a tooling component used in woodworking CNC machines, specifically designed to hold and secure tools for precision cutting, shaping, or milling. It follows the ISO 30 standard, which is commonly used for tool holders and collets in various CNC machines.

Key Features

• Model Number: 03B2017223F

• Material: Made from nylon, which is a durable, lightweight, and non-metallic material, ensuring less wear on the tool and spindle.

• ISO 30 Standard: The collet follows the ISO 30 standard for tool holders, which defines the size, shape, and compatibility of the collet for secure toolholding in CNC spindles.

• Function: The collet is used to securely hold the cutting or milling tool in place during machining operations, ensuring accurate and stable performance. The nylon material provides vibration dampening and reduces the risk of tool damage.

Common Applications in CNC Machines

✅ Toolholding: Used for holding tools such as cutters, drills, or milling tools in place, ensuring precise cutting or shaping.
✅ ISO 30 Compatibility: It fits into CNC spindles designed for ISO 30 tool holders, which are typically used in smaller to medium-sized machines.
✅ Reduced Vibration: The nylon construction helps reduce vibration, which can improve the surface finish and overall precision of the machining operation.
✅ Tool Change: The collet is often part of an automated tool change system, making tool swapping quicker and more efficient.

Installation & Maintenance Tips

• Proper Tool Insertion: Ensure that the tool is inserted correctly into the collet, with no debris or dirt that could affect its fit.

• Tightening: Tighten the collet properly to hold the tool securely, but avoid over-tightening, as that could cause damage to the collet or tool.

• Inspect Regularly: Regularly check the nylon collet for signs of wear, cracks, or damage. Nylon collets may wear down over time, especially under high-torque conditions.

• Lubrication: Use the appropriate lubrication or cleaning agents to maintain the collet's functionality and extend its lifespan, depending on the machine’s guidelines.

• Cleanliness: Ensure the collet is free from debris, dust, and chips, as these can interfere with its performance and the tool's precision.
