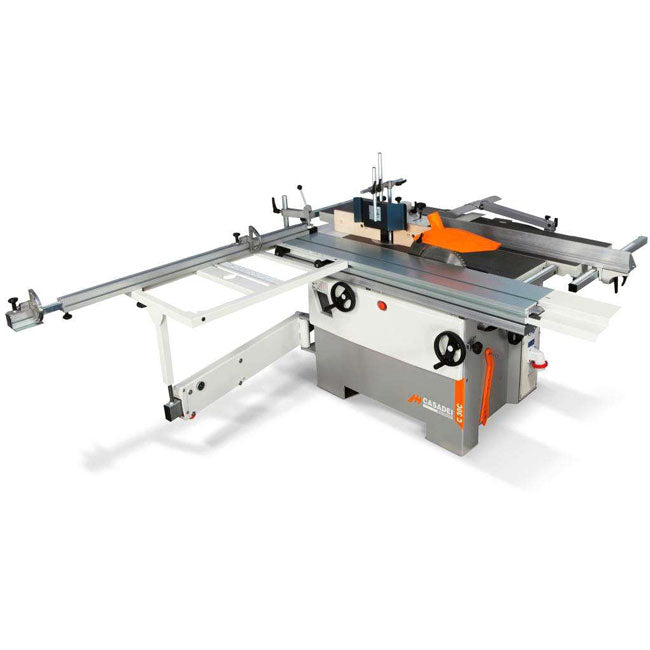

C 30 C Universal Combined Machine

Description

General Description: The C 30 C Universal Combined Machine is a professional woodworking tool designed for versatility and precision in a single, compact unit. Combining four essential functions—circular saw, spindle moulder, surface planer, and thickness planer—the C 30 C delivers consistent, high-quality performance across a variety of woodworking tasks. With heavy ribbed cast-iron worktables, micrometric adjustments, and hardened steel guideways, this machine is built to handle both large and small-scale projects with ease.

Upgrade Your Workshop with the C 30 C Universal Combined Machine!

The C 30 C Universal Combined Machine combines precision, durability, and versatility into one reliable unit, perfect for woodworking professionals. Whether you need to cut, mould, plane, or thickness, this machine provides the ultimate solution for your woodworking needs.

Contact us today to learn more or request a personalized quote!

Features

Key Features:

• Heavy Ribbed Cast-Iron Worktables: Designed for durability and vibration reduction, providing maximum stability during operation for precise results.
• Circular Saw with Scoring Motor: The 315 mm saw blade combined with an independent scoring motor ensures clean, precise cuts. The saw blade tilts from 90° to 45°, offering flexibility for angled cuts.
• Anodized Aluminium Sliding Table (270x124x1600 mm): Provides high precision and smooth, reliable movement on hardened steel guideways for crosscutting and ripping.
• Spindle Moulder with 4 Speeds: Equipped with four spindle speeds (3500, 7000, 10000 rpm), this moulder allows for versatile use with different tools and materials.
• Simultaneous Surface Planer Table Opening: Allows for easy transition between planing and thicknessing tasks, with tables that open towards the machine’s interior to save space.
• Planing and Ripping Dual Purpose Fence: The 90° to 45° tiltable fence offers precision for both planing and ripping tasks.
• Thickness Planer with Precise Height Adjustment: The thicknessing table features an adjustable system that lifts via four robust screws, providing accuracy for material thickness adjustments.

Advantages

Advantages:

• Multifunctionality: Combines four machines into one, reducing the need for multiple units and saving valuable workshop space.
• High Precision and Ease of Use: With micrometric adjustments, hardened steel guideways, and digital spindle height readouts, the C 30 C offers high accuracy for professional-level results.
• Heavy-Duty Construction: Built with cast-iron components, this machine offers the durability required for years of high-performance use, even in demanding workshops.

Benefits

Benefits:

• Increased Efficiency: The all-in-one functionality allows for faster transitions between tasks, reducing setup time and increasing productivity.
• Versatile and Reliable: From cutting to moulding and planing, the C 30 C is a versatile tool that can handle a wide range of woodworking projects with precision and ease.
• Long-Term Investment: Designed for durability, this machine offers years of reliable service and professional results, making it a solid investment for any woodworking professional.

Technical Data

Technical Data:

• Surface Planer:

  • Max. Working Width: 300 mm
  • Total Length of Surface Tables: 1510 mm
  • Max. Stock Removal: 4 mm
  • Tiltable Surface Fence: 90° to 45°

• Thickness Planer:

  • Thicknessing Table Dimensions: 585 x 300 mm
  • Feed Speed: 7 m/min
  • Min./Max. Working Height: 3.5 / 230 mm
  • Max. Stock Removal: 4 mm

• Circular Saw:

  • Max. Squaring Stroke (Basic Machine): 1600 mm
  • Cutting Width on Rip Fence: 900 mm
  • Saw-Spindle Moulder Table Dimensions: 335 x 1115 mm
  • Max. Diameter of Saw Blade with Installed Scoring Unit: 315 mm
  • Max. Saw Blade Projection at 90°/45° (ø 315 mm): 100 / 78 mm
  • Saw Blade Tilting Range: 90° to 45°

• Spindle Moulder:

  • Max. Spindle Working Height: 100 mm
  • Spindle Moulder Speeds: 3500, 7000, 10000 rpm
  • Max. Tool Diameter Lowered Under Table at 90°: 180 mm
  • Max. Tool Diameter When Profiling: 210 mm

• Motor Power (S6):

  • 5 kW (6.6 HP) at 50 Hz / 6 kW (8 HP) at 60 Hz

• Exhaust Outlets Diameter: 120 mm

Options

Popular Options:

1. Tersa Cutter-Block with 3 Knives: Features a rapid-locking system for quick knife changes, providing smooth, efficient cutting results.
2. Spiral Spindle with 3 Sets of Knives: Includes 66 self-locking knives, offering a superior finish with smoother cuts and reduced marking.
3. Rubber-Coated Feed Roller on Thicknesser Outfeed: Ensures better material traction, making it easier to handle dense materials.
4. Powered Raise & Fall of Thicknessing Table: The electronic digital readout allows for precise height adjustments, increasing accuracy for thicknessing.
5. Cast Iron Mortiser: With a 16 mm chuck and exhaust hood, perfect for precise mortising tasks in woodwork.
