Description
The Doucet BT3 Return Conveyor is a third-generation belt transfer return system designed to seamlessly integrate with medium to large-sized edgebanders. Built on a modular frame, the BT3 series enhances efficiency, productivity, and material handling in high-volume woodworking operations.
By incorporating a fast, simple, and highly effective belt transfer system, the BT3 automatically returns processed panels to the operator, eliminating the need for a second worker and reducing material handling time. This conveyor system is ideal for edgebanding applications, where continuous workflow and precise handling are critical for productivity.
Available in five roller length models (BT3-24, BT3-30, BT3-36, BT3-48, and BT3-60), the BT3 adapts to a range of panel sizes and edgebanding operations, making it an essential tool for woodworking shops looking to optimize efficiency.
Operating Principle
-
Panel Detection & Transfer
- As panels exit the edgebander, the receiving rollers detect the trailing end of the panel and initiate the transfer process.
-
Side Transfer & Return Conveyor
-

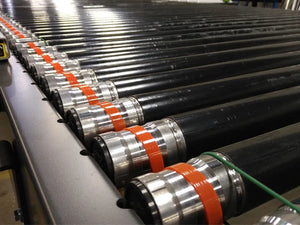

Belt transfer system moves the panel to a set of motorized return rollers that are positioned 2 inches lower than the pass line to avoid panel overlap issues.
-
Panel Reset for Continuous Operation
- Once the panel has cleared the receiving area, the rollers return to their upper position, ready for the next panel.
Why Choose the Doucet BT3 Return Conveyor?
The Doucet BT3 Return Conveyor is an essential tool for modern woodworking shops looking to improve efficiency, reduce labor costs, and enhance workplace safety. With automated panel returning, high-speed transfer capabilities, and customizable options, this system is ideal for edgebanding applications where high-volume processing is required.
By integrating the BT3 Return Conveyor into your production workflow, you can increase throughput, minimize downtime, and optimize material handling, all while ensuring precise and consistent panel movement.
Features
Key Features
-
Automated Return System – Designed to pair with medium to large edgebanders, automatically returning panels to the operator for increased workflow efficiency.
-
High-Speed Belt Transfer System – Efficient side transfer mechanism moves panels quickly and smoothly to the return conveyor.
-
Adjustable Receiving Table Speed – Variable speed from 30 to 90 ft/min to match the edgebander’s processing speed.
-
Optimized Return Conveyor Speed – Adjustable from 60 to 180 ft/min for maximum productivity.
-
Seamless Panel Handling – Transfer belts positioned between rollers gently shift the product while avoiding interference with overlapping panels.
-
Heavy-Duty Modular Frame – Ensures durability, long-lasting performance, and easy system expansion.
Advantages
Advantages
✅ Increases Productivity – Eliminates the need for a second worker, reducing labor costs and improving workflow efficiency.
✅ Enhances Operator Safety – Reduces manual panel handling, minimizing fatigue and injury risks.
✅ Customizable to Various Operations – Available in multiple lengths to match different panel sizes and production needs.
✅ Smooth Panel Handling – No impact or jamming, ensuring consistent performance in high-production environments.
✅ Integrated Speed Control – Adjustable speeds allow synchronization with edgebander output, preventing bottlenecks.
Benefits
Benefits
🔹 Reduces Labor Costs – Operators can handle larger workloads with less fatigue, increasing efficiency.
🔹 Maximizes Production Speed – The high-speed belt transfer system and adjustable conveyor speeds keep up with edgebanders for continuous operation.
🔹 Prevents Panel Damage – The precise transfer system ensures that panels are moved smoothly and safely throughout the process.
🔹 Flexible & Scalable – Works with various panel sizes and integrates additional accessories for enhanced performance.
🔹 Optimizes Workflow – Eliminates unnecessary movement, streamlining the production process for improved turnaround times.
Technical Data
Technical Specifications
| Feature |
Specification |
| Available Models |
BT3-24, BT3-30, BT3-36, BT3-48, BT3-60 |
| Receiving Table Speed |
Adjustable from 30 to 90 ft/min |
| Belt Transfer Speed |
Fixed at 180 ft/min |
| Return Conveyor Speed |
Adjustable from 60 to 180 ft/min |
Options
Optional Features & Accessories
The BT3 Return Conveyor can be customized with several optional features to enhance performance and adaptability for specific production needs:
-
PT-90 Panel Turner – Rotates panels 90° as part of the transfer process, simplifying short-side processing for long and narrow panels.
-
Panel Deviator – Redistributes panels less than 6” wide over several rollers to prevent stacking issues.
-

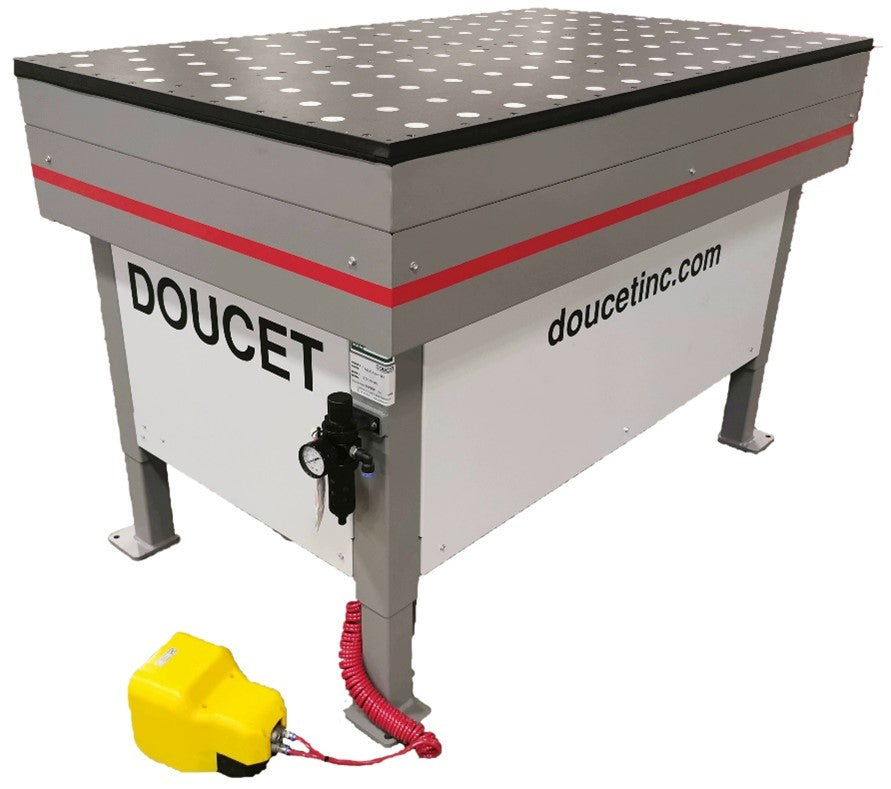

Air Table – Reduces friction during panel movement, minimizing scratches and handling resistance.
-

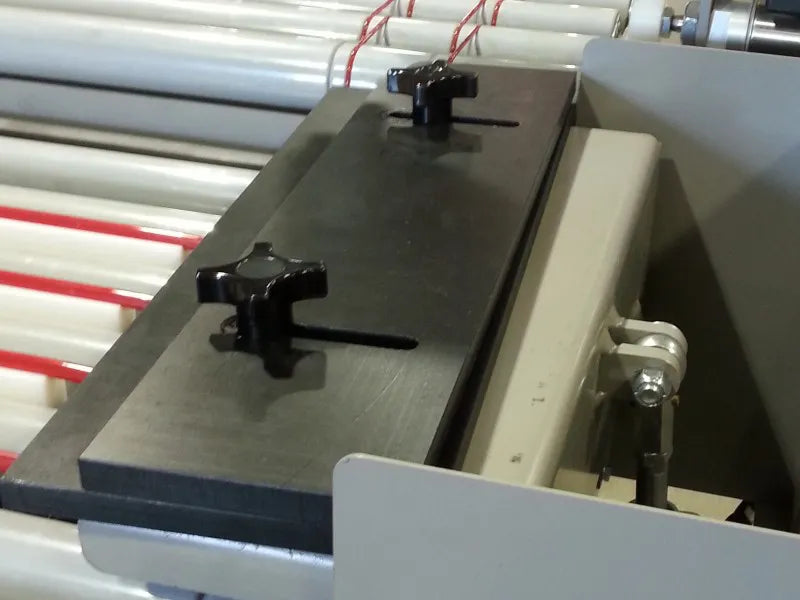

Movable Support Ledge for High Volume of Short Parts (#D115-319) – Optimizes handling of smaller panels and short parts.
