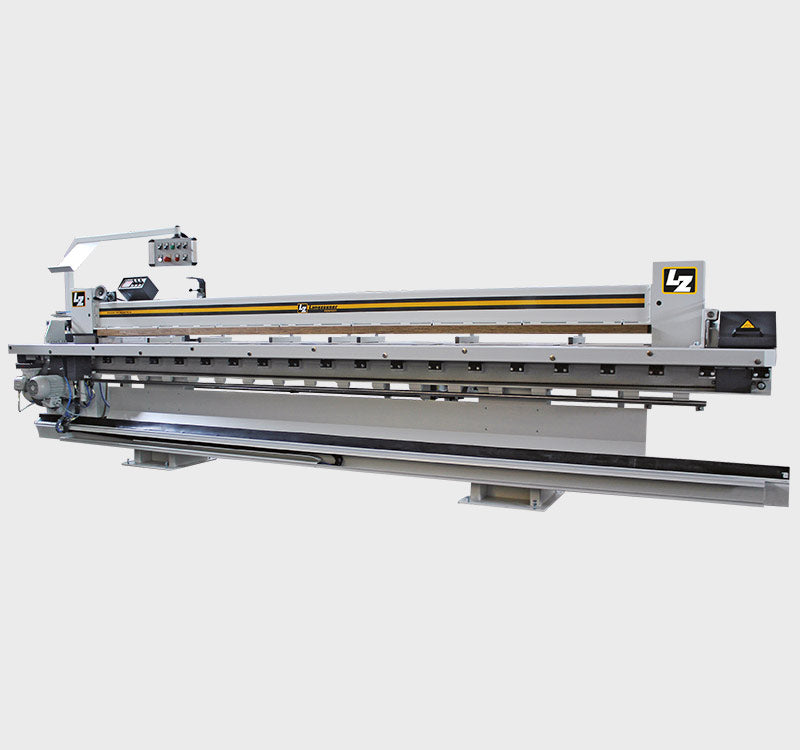

Langzauner LZ5-2 Veneer Saw
General Description: The Langzauner LZ5-2 Veneer Saw is a high-performance machine designed for splinter-free, joint-tight cutting of a variety of materials, including veneers, plastics, plastic-coated panels, acrylics, wood materials, light metals, and cardboard. With a combination of saw and milling units, automatic adjustments, and advanced features like digital measuring displays, the LZ5-2 delivers unmatched precision and efficiency. Whether you're cutting complex materials or simple wood panels, the LZ5-2 provides excellent results with every pass.
Upgrade Your Workshop with the Langzauner LZ5-2 Veneer Saw!
The Langzauner LZ5-2 Veneer Saw is a perfect solution for businesses requiring high-precision, splinter-free cuts on a variety of materials. With its automated features, digital measuring system, and pneumatic adjustments, this saw is ideal for high-efficiency operations in industries where precision and speed are crucial.
Contact us today to learn more or request a personalized quote!
Features
Key Features:
-

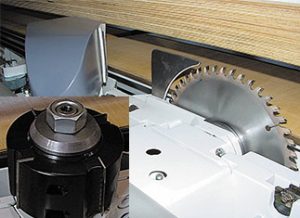

Milling Unit for Perfect Cutting Kerf: The saw comes equipped with a milling unit, ensuring a perfect kerf for splinter-free cuts, even on delicate materials like veneer and acrylic.
-

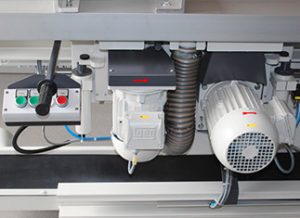

Manual Feed Handlebar: The manual feed handlebar provides precise control over material feeding during cutting, giving the operator full command of the operation.
-
Double Linear Guide: This double linear guiding system ensures smooth, accurate movement and alignment during cuts, providing optimal cutting results across a variety of materials.
-
4 HM Inserts: The machine features four high-quality tungsten carbide inserts, ensuring durability and longevity of the saw blade.
-
Pneumatic Saw Blade and Milling Unit Adjustment: The saw and milling units can be pneumatically lifted and lowered in three stages, allowing for precise adjustments based on material thickness.
-
Pneumatic Pressure Beam: The automatic pneumatic pressure beam holds the material securely during cutting, ensuring consistent results with minimal effort.
-

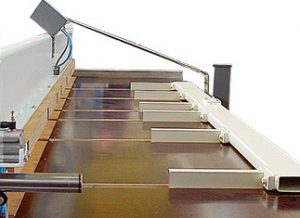

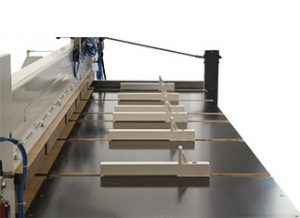

Format Table: The format table is designed for precise processing of veneers, with pneumatically lowerable stops for a stop depth of 800 mm, allowing quick adjustments for various materials and cutting tasks.
-
Digital Measuring Display (Optional): The electronic measuring display offers accurate stop depth adjustments, simple operation, and offset changeovers, ensuring fast and precise cuts every time.
-

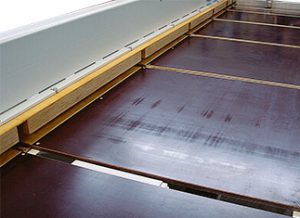

Parallel Stop (Adjustable): The parallel stop can be one-stage or double-stage lowerable, ensuring fast and efficient material handling during cutting operations.
-
Chipping Unit (Optional): The chipping unit reduces material waste and ensures cleaner cuts, enhancing overall operational efficiency.
Advantages
Advantages:
-
Enhanced Precision and Efficiency: The combination of saw and milling units, automatic pneumatic adjustments, and digital measuring displays ensures that cuts are consistently accurate, smooth, and fast, even when processing large volumes of material.
-
Versatile Material Handling: Capable of cutting various materials, including wood, plastics, acrylics, and light metals, the LZ5-2 is perfect for businesses requiring flexibility in their cutting operations.
-
Automation and Safety: With features such as the pneumatic pressure beam and transparent safety covers, the LZ5-2 enhances operator safety while minimizing the need for manual intervention.
-
Space-Saving Design: The compact design of the LZ5-2 ensures efficient operation in small or busy workshops without compromising performance.
Benefits
Benefits:
-
Increased Productivity: The automated adjustments, pneumatic lifting and lowering system, and digital measuring display reduce setup time and manual labor, increasing throughput and efficiency.
-
Cost-Effective Operations: By reducing material waste, improving cutting accuracy, and ensuring clean results, the LZ5-2 helps businesses save on both materials and labor costs.
-
Reliability and Longevity: Built with high-quality components such as HM inserts and precision guides, the LZ5-2 is designed for long-term reliability, ensuring minimal maintenance and extended service life.
Technical Data
Technical Data:
-
Cutting and Milling Height: 40 mm
-
Motor Power (Saw): 2.2 kW
-
Rotation Speed (Saw Blade): Approx. 10,000 rpm
-
Saw Blade Diameter: Ø 200 mm
-
Motor Power (Milling Unit): 1.1 kW
-
Rotation Speed (Milling Cutter): Approx. 10,500 rpm
-
Milling Cutter Dimensions (Ø x H x iØ): 85 / 50 / 30 mm
-
Motor Power (Feed): 0.18 kW
-
Feed Speed: 2-25 m/min
-
Extraction Diameter: Ø 140 mm
-
Air Velocity: ≥ 20 m/s
-
Volume Flow (at 20 m/s): 1000 m³/h
-
Suction Vacuum (at 20 m/s): 1780 Pa
-
Required Air Pressure: 6 bar
-
Total Connected Load: 3.5 kW
-
Operating Current: 9 A
-
Operating Voltage: 3 x 400 V + N + PE / 50 Hz
-
Cutting and Milling Lengths: 3050 mm, 3500 mm, 4000 mm
-
Required Space (without format table):
- 3050 mm length: Approx. 4500 x 1150 mm
- 3500 mm length: Approx. 4950 x 1150 mm
- 4000 mm length: Approx. 5450 x 1150 mm
-
Required Space (with all options):
- 3050 mm length: Approx. 4500 x 1600 mm
- 3500 mm length: Approx. 4950 x 1600 mm
- 4000 mm length: Approx. 5450 x 1600 mm
-
Weight (without format table):
- 3050 mm length: Approx. 900 kg
- 3500 mm length: Approx. 1000 kg
- 4000 mm length: Approx. 1100 kg
-
Weight (with all options):
- 3050 mm length: Approx. 1100 kg
- 3500 mm length: Approx. 1200 kg
- 4000 mm length: Approx. 1300 kg
Options
Optional Equipment:
-
Rack and Pinion Compensator: Prevents the pressure beam from tilting, ensuring smooth and accurate cuts every time.
-
Movable Supporting Table: Can be manually movable or pneumatically controlled, providing flexibility for handling larger materials.
-
Digital Measuring Display: Ensures fast, accurate stop adjustments, with large digit height for easier operation.
-
Parallel Stop: Adjustable for one-stage or double-stage lowering, enabling quick adjustments for varying material sizes.
-
Chipping Unit: Reduces material waste and enhances cutting quality.
