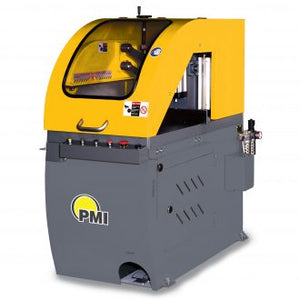

The PMI-20 is a semi-automatic upcut miter saw that is built and designed to cut aluminum extrusions, profiles, and other non-ferrous materials (copper, brass, plastics).

Technical Data:

  • 7.5 HP Saw Motor
  • Double Miter – 45 degrees to the left and right
  • 2800 RPM Saw Blade Speed
  • Full Control of the Feed Rate – Air over Oil Feed System
  • Vertical and Horizontal Clamping
  • Adjustable Clamping Pressure
  • 20” Diameter Saw Blade
  • 5.9” Maximum Sawing Height
  • 11” Maximum Sawing Width

Cut Chart:

PMI 20 Cut Chart
