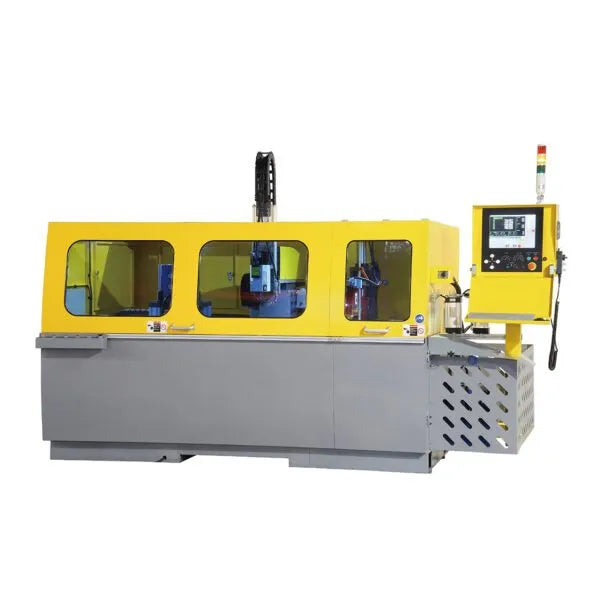

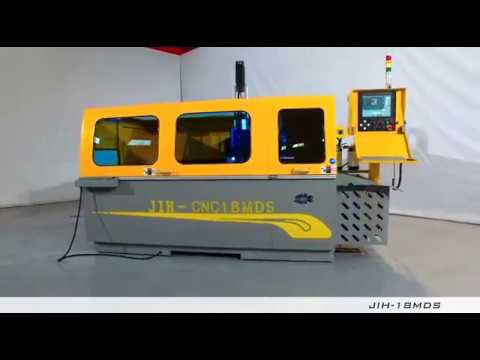

The PMI-CNC18 MDS Machining and Saw Center is built and designed to mill, drill, tap, and saw Aluminum and other non-ferrous materials (copper, brass, plastics).
STANDARD FEATURES & EQUIPMENT:
- X-axis Travel 59 Inches (1.5m)
- Y-axis Travel 12.8 Inches (325mm)
- Z-Axis Travel 11.81 Inches (300mm)
- Shuttle Index Length 49.2 Inches (1.25m)
- Spindle Speed 12,000 RPM
- Spindle Motor 5 HP
- Tool Holder ISO 30
- Saw Motor 10 HP
- Saw Blade Diameter 18 Inches
- Saw Head Feed Fully Hydraulic
- 1 HP Hydraulic Motor
- Equipped with Air Clamps
- Automatic Waylube Lubrication System
- Mist Lubrication System – Saw Head and Machining Spindle
- Mitsubishi Servo Drives/Motors
- X, Y, and Z-axes are servo controlled
- Material Indexing Control: Ballscrew with Servo
