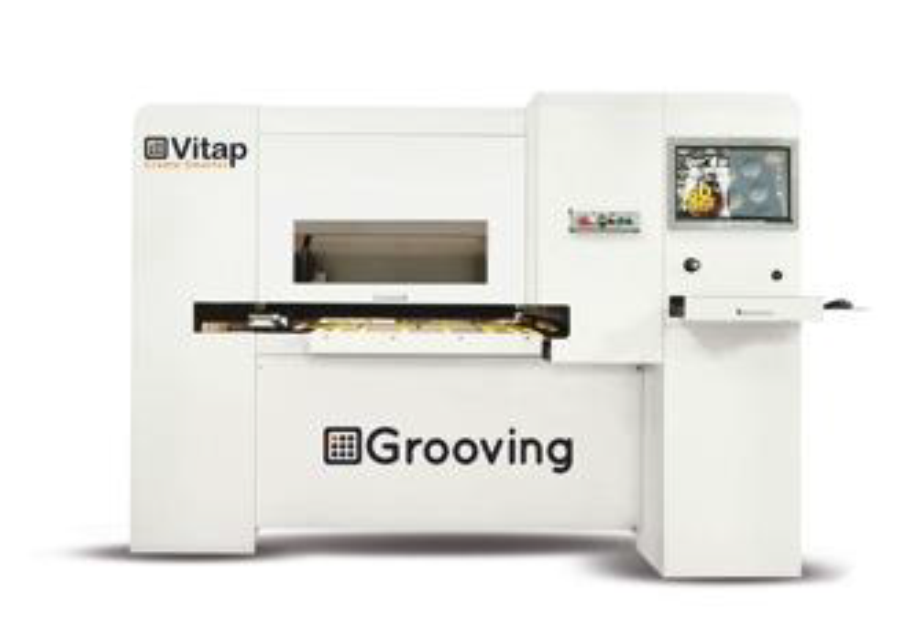

VITAP GROOVING Machining Center

Vitap uses 3-dimensional solid modeling systems to design its working centers which are built with a mobile carriage and stationary basement. The carriage moves in a longitudinal direction with respect to the basement (Y axis) and supports a pair of mounts which determine the movement of the Z axes for the drill block and electrospindle.  The infinite X axis is accomplished through a patented Double Dynamic clamp system which moves the panel back and forth through the machine. This configuration allows a remarkable reduction in the machine’s overall size and improves the machine’s performance and functionality.The basement and the beam are made of electrically welded steel and are ribbed and strengthened internally to guarantee maximum rigidity even under intense working.The structures undergo a thermally-controlled normalization cycle.


All phases of assembly undergo conformity checks according to special testing procedures.  The alignment of all the linear guides is carried out using an electronic level guaranteeing straightness and parallelism tolerances to be within 0.02 mm per linear meter.  On all machines, positioning precision and bi-directional repeatability of the axes is checked using an interferometer laser system. Bi-directional positioning precision is guaranteed within a tolerance of ±0.05 mm.    An electrical test of the whole system is carried out on each machine according to CEI EN 60204-1 legislation.


The X axis movement is obtained throught the use of the patented DDT or Double Dynamic Transport system. The system is composed of a two gripper system which are driven by two brushless motors.  By using two grippers, material can be seamlessly and continuously moved along the X axis without interrupting the milling or channeling processes.  The system also provides considerable stability of the piece as it is being milled.  The use of a single clamp is also used in the case of a smaller piece where the use of both grippers is not feasible.  The Movement of the grippers in the X and the carriage in the Y axis are by brushless motors driving eplcyclic reduction gear, rack and pinion with a high degree of precision.  The mobile beam or carriage moves on high precision pre-loaded ball runner blocks and linear guides made of rectified and hardened steel. Ball runner blocks for all axis are equipped with a seal guaranteeing maximum protection from dirt and dust.


The GROOVE uses one strategically located dust extraction port to evacuate dust and debries away from the machining area to help maximize efficiency and maintain surface quality of the piece.


The machine is equipped with automatic Centralized 22 Point lubrication system with progressive distribution.  The system has a single feeding point for the group of distributors, which send automatically and safely, an adequate volume of lubrication to each lubrication point.  The system is fed with a cartridge-doser that utilizes a 2Kg grease cartridge LIKO EPO.


The machine is self contained and all working units are shielded from the operator from all four sides.  Additional safety systems: push buttons for emergency stop, software and hardware to monitor the safety distance, check sensors for the air level.


The electrical cabinet is integrated in the right hand side of the machine base and is tested according to the strict international regulations (EN 60204).


Allows remote connection between the machine’s PC and Vitap's Authorized Service Center allowing direct intervention on the control for checking parameters of the whole machine, single programs and installation of eventual software updates.  Internet access and connection is the responsibility of the customer.


N.1 Shaft and pre-settable rotating counter

N.7 circular saw blades entre-axe: 30 mm- diameter 125 mm, blade thickness 4 mm

Z 12, blade body thickness 2.8mm

Max. shaft rotation speed 7000 RPM

Max panel weight 50Kg

Max panel size: X no limits, Y 1250mm, Z 50 mm

Min panel size: X 400 mm, Y 300 mm, Z 12 mm

Size: 2615x1640x1890 mm

Weight: 1150 Kg



The console for PC allows for the operator to program and control the machine according to the workflow of materials at any given time.  It is positioned on the right front side of the machine.  The control PC consists of:



Intel CELERON CLU J3355 2GHz processor

4 Gb RAM memory

60 Gb Hard Drive

Windows 10 operating system

High resolution 20” LCD TFT monitor

4 USB 2.0 ports

2 Ethernet RJ45 port for connecting to office network

WIFI antenna

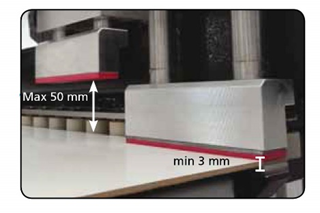

DDT Double Dynamic Transport

Double gripper system with enhanced brushless motors for moving the work-piece in the X axis (continuously): it can also work with a single gripper for small pieces. It allows to make channels and milling with no interruption for the recovery of the clamp. A considerable stability of the milling piece is obtained.

Patented high rigidity boring head movement on Y and Z Axis

58005864  Air conditioning for the electrical cabinet

Maintains clean, consistently cool air in electrical cabinet

Keeps humidity low inside cabinet, extending life of electrical components

56506145 Centralized 22 Point greasing pump with cartridge-dosers

Complete with 2 kg grease cartridge IKO EPO (to be bought with the machine)


56503174  Additional material handling rollers

Frontal and rear rollers for long panels 830 x 630 mm

Remote push-button panel

Includes magnet for easy placement of panel when not in use

The following redundant controls for convenient operation:


Program start

Selection of mode cycles manual or automatic


Single spindle shaft with multiple saw blades set at 32mm

  • Rapid change HSK spindle
  • Blade offset determined by spacers set between the blades. (32mm standard with machine)
  • Custom spacers available upon request.
  • Full parametric programming



The “Genesis Evolution”Numerical Control incorporates leading-edge, true PC-control on the Busellato, avoiding proprietary PLC control systems.  Review major features below and see our website https://www.casadeibusellato.us/products/tpa-genesis-evolution-training  for video tutorials on Genesis Evolution.

CAD integrated in the control with mirroring, rotation, repetition functions, etc.

“Multitasking” operating system for using the control even when the machine is working

-  Graphical display of the workable face

-  Multi-level zoom function

Conditioned programming (IF/EndIF Blocks) associated with the use of Macros

-  Absolute or incremental programming

-  Easy identification of stored programs using “preview” function

-  Archiving of programs with names up to 256 characters long

- Calculation of time required for program execution

Program simulation of working cycle

- Manual and machine diagnostic functions in real time with graphic help

- Management and diagnostic synoptics which makes using the machine easier

- Program list management and variable control from the list



Online Software Training:

Online training avoids travel expenses and allows training sessions in shorter segments; especially effective for those familiar with Busellato software or any CAD or CNC programming software.  We can offer up to 8 hours of online training in 2-hour minimum sessions.  These online sessions are conducted by a qualified software trainer and offer the flexibilty of changing screens from trainer to trainee during the session.  In addition, we offer tutorial videos on many advanced features that can be accessed on our website at anytime.


The entire installation and on-site training process will be completed within 32 labor hours, unless otherwise agreed in writing.  Our technicians use a comprehensive checklist to commission the machine and train your operators on the operation.  Some of the topics covered:

  • Machine safety and operation
  • Lubrication procedures and maintenance schedule
  • Tooling installation and parameters
  • Review of electrical, parts and instruction manuals
  • Control cabinet layout and major electrical components
  • Processing of your programmed parts
